How to remove an outer hexagon bolt?

Hey there! I'm an outer hexagon bolt supplier, and I've seen my fair share of both installing and removing these little guys. Today, I'm gonna walk you through how to remove an outer hexagon bolt. Whether you're a DIY enthusiast or a professional in the field, these tips should come in handy.

Tools You'll Need

First things first, you gotta have the right tools. You'll need a socket wrench that fits the size of the outer hexagon bolt. Make sure it's a good quality one, so it doesn't slip and damage the bolt head. You might also want to have a set of wrenches as a backup, just in case the socket wrench doesn't work. A lubricant like WD - 40 can be really useful, especially if the bolt is rusted or stuck. And don't forget a hammer; it can help you loosen a stubborn bolt.

Step 1: Assess the Situation

Before you start turning that wrench, take a good look at the bolt. Check if it's rusted, corroded, or if there's any debris around it. If it's rusted, spraying some WD - 40 on it and letting it sit for a few minutes can make a big difference. You can also use a wire brush to clean off any dirt or rust from the bolt head and the surrounding area. This will give your wrench a better grip and make the removal process easier.

Step 2: Choose the Right Socket

Now, you need to find the right socket for the bolt. Outer hexagon bolts come in different sizes, so you gotta pick the one that fits perfectly. If the socket is too big, it won't grip the bolt properly, and if it's too small, it might damage the bolt head. Once you've found the right socket, attach it to your socket wrench. Make sure it's securely in place so it doesn't come off while you're trying to remove the bolt.

Step 3: Start Turning

Place the socket over the bolt head and make sure it's fully seated. Then, start turning the socket wrench counter - clockwise. Apply steady pressure, but don't go too crazy. If the bolt doesn't budge, stop and try some other methods. You can give the wrench a gentle tap with a hammer to help loosen the bolt. Sometimes, the vibrations can break the rust or corrosion that's holding the bolt in place.

Step 4: Dealing with Stubborn Bolts

If the bolt is really stubborn, there are a few things you can try. One option is to heat the area around the bolt with a propane torch. The heat will cause the metal to expand, which can break the bond between the bolt and the surface it's screwed into. But be careful when using a torch; you don't want to damage the surrounding materials. Another option is to use a bolt extractor. These are special tools designed to remove broken or stuck bolts. You drill a hole in the center of the bolt and then insert the extractor, which will grip the bolt and allow you to turn it out.

Different Types of Outer Hexagon Bolts

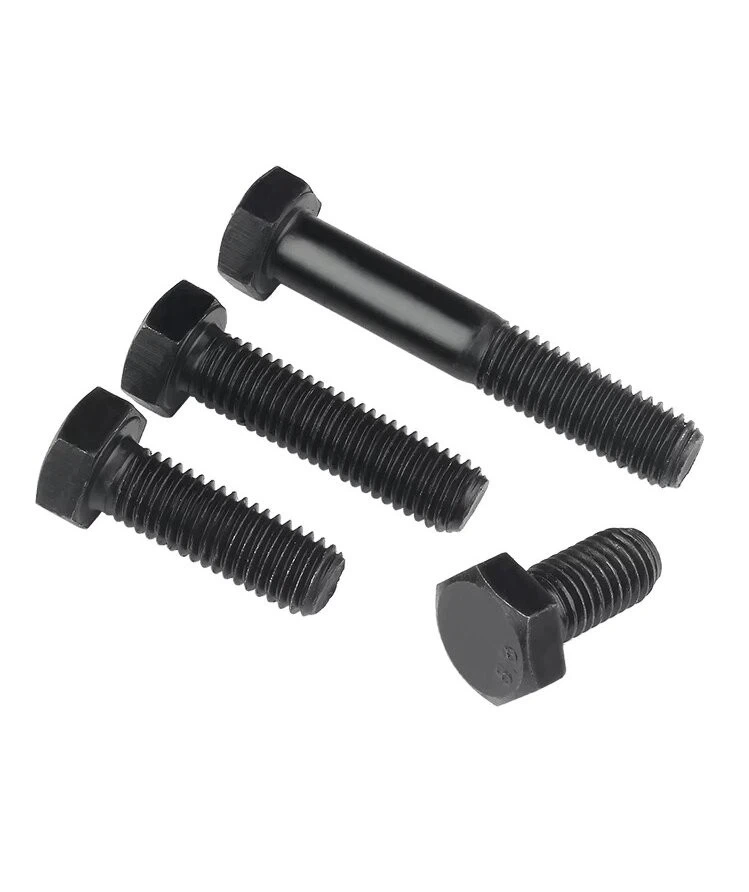

As an outer hexagon bolt supplier, I know there are many different types of outer hexagon bolts out there. For example, the 8.8 Grade Hex Bolt is a high - strength bolt that's commonly used in construction and machinery. It can withstand a lot of stress, but it can also be a bit more difficult to remove if it's been in place for a long time.

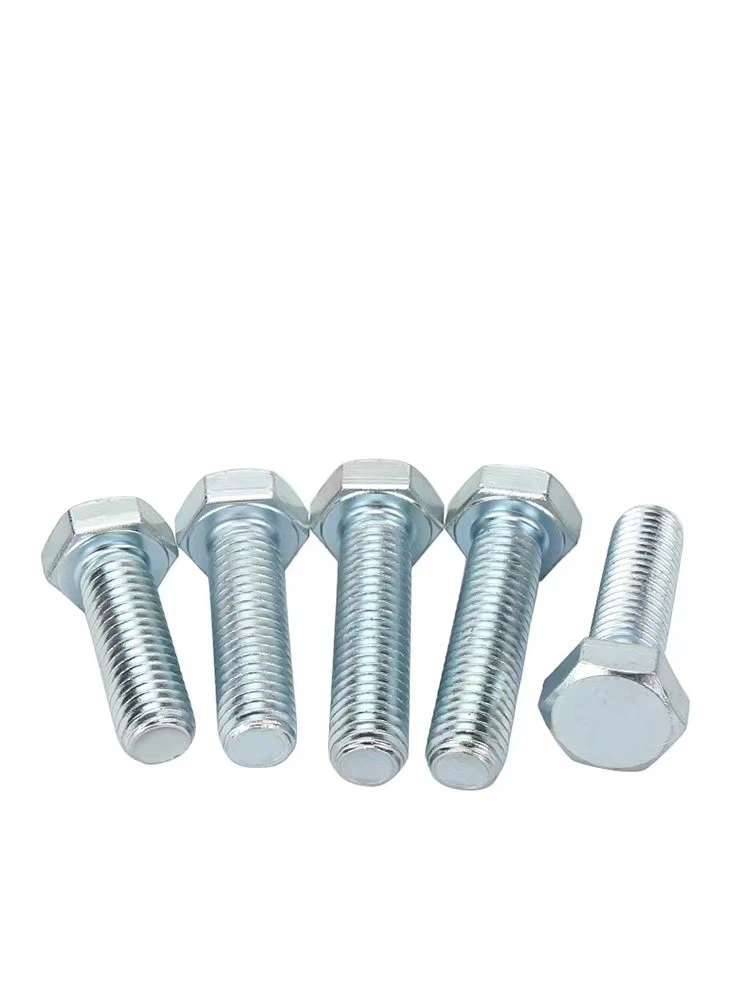

The GB5783 Hex Bolt is a standard bolt that follows the Chinese national standard. It's widely used in various industries because of its reliability and affordability.

The UNC American Hex Bolt is designed according to the Unified National Coarse thread standard. It's often used in American - made machinery and equipment.

Step 5: Final Checks

Once you've removed the bolt, take a look at it. Check if there's any damage to the bolt or the surrounding area. If the bolt is reusable, clean it up and store it properly. If it's damaged, you might need to replace it with a new one. Also, check the hole where the bolt was located. Make sure there's no debris or damage in the hole, as this could affect the installation of a new bolt.

Tips and Tricks

• If you're working in a tight space, you can use a ratcheting wrench or a box - end wrench instead of a socket wrench. They can be more maneuverable in small areas.
• If the bolt head is stripped, you can try using a pair of vise - grips to grip the bolt and turn it out. Just be careful not to damage the bolt further.
• Always wear safety glasses when removing bolts. There's a risk of debris flying into your eyes, especially if you're using a hammer or a torch.

Conclusion

Removing an outer hexagon bolt might seem like a simple task, but it can sometimes be a real pain, especially if the bolt is stuck. By following these steps and using the right tools, you can make the process a lot easier. And if you're in the market for outer hexagon bolts, whether it's the 8.8 Grade Hex Bolt, GB5783 Hex Bolt, or UNC American Hex Bolt, I'm here to help. If you have any questions about our products or need some advice on bolt selection, feel free to reach out. We're always happy to assist with your procurement needs and have a good chat about how we can meet your requirements.

References

• "Handbook of Bolts and Fasteners"
• Online resources on DIY bolt removal techniques
